# Confounding Example: Finding causal effects from observed data

Suppose you are given some data with treatment and outcome. Can you determine whether the treatment causes the outcome, or the correlation is purely due to another common cause?

[1]:

import os, sys
sys.path.append(os.path.abspath("../../"))

[2]:

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
import math
import dowhy
from dowhy.do_why import CausalModel
import dowhy.datasets, dowhy.plotter


## Let’s create a mystery dataset for which we need to determine whether there is a causal effect.

Creating the dataset. It is generated from either one of two models: * Model 1: Treatment does cause outcome. * Model 2: Treatment does not cause outcome. All observed correlation is due to a common cause.

[3]:

rvar = 1 if np.random.uniform() >0.5 else 0
data_dict = dowhy.datasets.xy_dataset(10000, effect=rvar, sd_error=0.2)
df = data_dict['df']

   Treatment    Outcome        w0
0   9.226765  17.942530  3.064244
1   5.627733  11.675522 -0.379016
2   9.593378  19.594728  3.692605
3   6.347941  12.917889  0.480172
4   2.806808   5.247733 -3.304526

[4]:

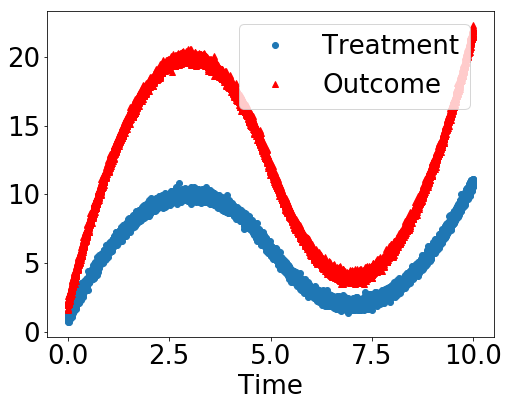

dowhy.plotter.plot_treatment_outcome(df[data_dict["treatment_name"]], df[data_dict["outcome_name"]],
df[data_dict["time_val"]])


## Using DoWhy to resolve the mystery: Does Treatment cause Outcome?

### STEP 1: Model the problem as a causal graph

Initializing the causal model.

[5]:

model= CausalModel(
data=df,
treatment=data_dict["treatment_name"],
outcome=data_dict["outcome_name"],
common_causes=data_dict["common_causes_names"],
instruments=data_dict["instrument_names"])
model.view_model(layout="dot")

WARNING:dowhy.do_why:Causal Graph not provided. DoWhy will construct a graph based on data inputs.
INFO:dowhy.do_why:Model to find the causal effect of treatment ['Treatment'] on outcome ['Outcome']

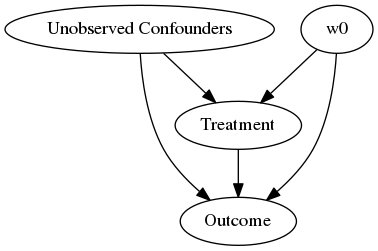

Showing the causal model stored in the local file “causal_model.png”

[6]:

from IPython.display import Image, display
display(Image(filename="causal_model.png"))


### STEP 2: Identify causal effect using properties of the formal causal graph

Identify the causal effect using properties of the causal graph.

[7]:

identified_estimand = model.identify_effect()
print(identified_estimand)

INFO:dowhy.causal_identifier:Common causes of treatment and outcome:['w0', 'U']
WARNING:dowhy.causal_identifier:There are unobserved common causes. Causal effect cannot be identified.

WARN: Do you want to continue by ignoring these unobserved confounders? [y/n] y

INFO:dowhy.causal_identifier:Instrumental variables for treatment and outcome:[]

Estimand type: ate
### Estimand : 1
Estimand name: backdoor
Estimand expression:
d
──────────(Expectation(Outcome|w0))
dTreatment
Estimand assumption 1, Unconfoundedness: If U→Treatment and U→Outcome then P(Outcome|Treatment,w0,U) = P(Outcome|Treatment,w0)
### Estimand : 2
Estimand name: iv
No such variable found!



### STEP 3: Estimate the causal effect

Once we have identified the estimand, we can use any statistical method to estimate the causal effect.

Let’s use Linear Regression for simplicity.

[8]:

estimate = model.estimate_effect(identified_estimand,
method_name="backdoor.linear_regression")
print("Causal Estimate is " + str(estimate.value))

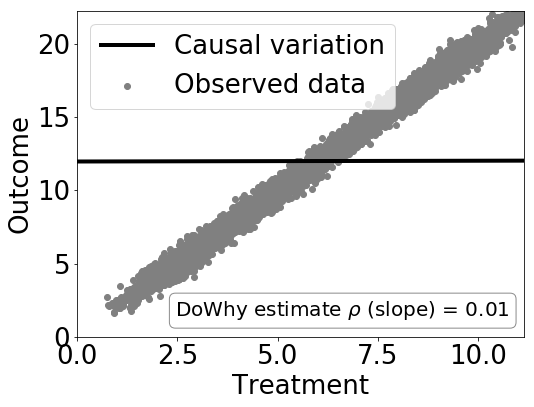

# Plot Slope of line between treamtent and outcome =causal effect
dowhy.plotter.plot_causal_effect(estimate, df[data_dict["treatment_name"]], df[data_dict["outcome_name"]])

INFO:dowhy.causal_estimator:INFO: Using Linear Regression Estimator
INFO:dowhy.causal_estimator:b: Outcome~Treatment+w0

Treatment
Causal Estimate is 0.0051827863049


### Checking if the estimate is correct

[9]:

print("DoWhy estimate is " + str(estimate.value))
print ("Actual true causal effect was {0}".format(rvar))

DoWhy estimate is 0.0051827863049
Actual true causal effect was 0


### Step 4: Refuting the estimate

We can also refute the estimate to check its robustness to assumptions (aka sensitivity analysis, but on steroids).

### Adding a random common cause variable

[10]:

res_random=model.refute_estimate(identified_estimand, estimate, method_name="random_common_cause")
print(res_random)

INFO:dowhy.causal_estimator:INFO: Using Linear Regression Estimator
INFO:dowhy.causal_estimator:b: Outcome~Treatment+w0+w_random

['Treatment']
Treatment
Refute: Add a Random Common Cause
Estimated effect:(0.0051827863049019127,)
New effect:(0.0052748828365418695,)



### Replacing treatment with a random (placebo) variable

[11]:

res_placebo=model.refute_estimate(identified_estimand, estimate,
method_name="placebo_treatment_refuter", placebo_type="permute")
print(res_placebo)

INFO:dowhy.causal_estimator:INFO: Using Linear Regression Estimator
INFO:dowhy.causal_estimator:b: Outcome~placebo+w0

['Treatment']
placebo
Refute: Use a Placebo Treatment
Estimated effect:(0.0051827863049019127,)
New effect:(0.0013214086372636913,)



### Removing a random subset of the data

[12]:

res_subset=model.refute_estimate(identified_estimand, estimate,
method_name="data_subset_refuter", subset_fraction=0.9)
print(res_subset)

INFO:dowhy.causal_estimator:INFO: Using Linear Regression Estimator
INFO:dowhy.causal_estimator:b: Outcome~Treatment+w0

['Treatment']
Treatment
*** Causal Estimate ***

## Target estimand
Estimand type: ate
### Estimand : 1
Estimand name: backdoor
Estimand expression:
d
──────────(Expectation(Outcome|w0))
dTreatment
Estimand assumption 1, Unconfoundedness: If U→Treatment and U→Outcome then P(Outcome|Treatment,w0,U) = P(Outcome|Treatment,w0)
### Estimand : 2
Estimand name: iv
No such variable found!

## Realized estimand
b: Outcome~Treatment+w0
## Estimate
Value: 0.0032596514859678217

Refute: Use a subset of data
Estimated effect:(0.0051827863049019127,)
New effect:(0.0032596514859678217,)



As you can see, our causal estimator is robust to simple refutations.
